Titan 240SP: A Modular Heavy-Duty Portable Solar Generator

We are familiar with a wide variety of portable solar generators. They include a lot of heavy-duty models like the ones of Goal Zero Yeti Pro 4000 and Bluetti EP500Pro. It is here we have a more powerful and reliable heavy-duty solar generator from a start-up, PointZeroEnergy. It is called the Titan 240SP solar generator.

The most impressive thing about Titan is its increased scalability. You can customize its battery capacity as it touts an unrivaled stackable profile. That is, you can stack up multiple units of its exclusive 2,500Wh battery packs.

Until today, we have had Yeti Pro 4000 as the largest ready-to-use solar generator. Titan 240SP is certainly an amazing choice as it comes with a lot of impressive features and specialties. With multiple stackable battery packs and regular batteries, you can take the storage capacity of Titan to virtually an indefinite range. Goal Zero Yeti Pro 4000 also has an expandable system with additional battery packs.

Why choose the Titan 240SP Solar Generator?

Well, Titan 240SP is the latest large-sized portable solar generator from PointZeroEnergy. As you know, Goal Zero has a line-up of solar power stations. But what is more special about Titan is that it is available in a variety of kits that are ready-to-use out-of-the-box in your home, RV, camper, boat, and more.

Titan solar kits come with multiple pieces of the most efficient solar panels. As it supports solar output up to a huge 4,000 watts, there is certainly a large scope for increased expansion of the system with many panels. The system also allows 8,000 peak power output for up to 10 seconds. Thanks to its heavy duty MPPT controller and higher solar input, Titan gets recharged quite faster under the sun, up to 2400W.

Titan Solar Generator – Features

Titan is undoubtedly one of the best solar generators on the market today. The key attraction of the device is its highly modular profile. The stackable solar generator has its power unit on the top, which packs up the components like power inverter, dual solar charge controllers, DC converter, charging circuitry, etc.

As you see in the photo, it has got LifePO4 battery packs as supplementary units. A single battery pack is a 2,500Whr (watt-hour) unit, which is stackable with unlimited pieces, but six units are recommended for easy moving of the system. The battery packs connect each other via the built-in Anderson connectors.

A piece of the lithium battery pack weighs 30 lbs, and it remains intact to the main body, thanks to the little latches and hinges at both ends. With multiple units of battery packs, The Titan 240SP is absolutely a massive power station but is only ideal as a stationary backup system in a house, RV, tent, or remote cabin.

However, it is a portable solution, because you can effortlessly move it on a wheeled cart.

For light off grid power needs, you just need to buy Titan with a single unit of battery. But if you have to run appliances up to 2500 watts continuously so often, attach a second battery and make it a more powerful one. It is indeed a very simple process to add a battery. Just press it on and tighten the locks.

After, you just need to reprogram the generator in a few simple steps. Only then, the display will show up the capacity of the added battery. Once done, you are all set to go with a massive power station, which remains unrivaled in the growing portable solar power market, at the moment.

Titan Solar Generator – Specs

Specs-wise, Titan 240SP is equipped with a 4,000-watt power inverter, that has two inverter inputs. By the way, the base variant of the device with a single unit of the battery is actually a 2500Wh (240V) power station.

You can certainly add more battery packs to boost its total capacity. A single 2500Wh LifePO4 battery can power up most of your essential electronics, by the way. See, a battery can charge your phone over 300 times, run a 50-in 65W LCD TV for 30 hours, and a 55W refrigerator for 36 hours.

When it comes to the specs in detail, Titan 240SP has a battery voltage of 27.2V, and the capacity of a battery pack is 2500 watt-hours and 90 amps. The system is compatible with almost all 24V battery types.

Other Charging Options

Other than the AC sockets, the Titan solar generator highlights four AC 120V plugs and two 240V AC plugs of different styles. There are no built-in USB ports or car sockets with the Titan 240SP, though.

When it comes to weight and size, the single battery variant weighs just around 62 lbs, and the dimensions 12×18.5×5 in inches.

Compatible Solar Panels

As you know, Titan solar generator supports up to 2400W of solar output. So, you can connect 12x 200W solar panels to its dual AC inlets. You can use any solar panels, but the brand itself offers two types of 200W solar panels – rigid and briefcase.

Apart from offering solar panels, PointZeroEnergy has packed up an incredible collection of solar generator kits with these two panels. Anyway, coming to specs of the solar panels, both the rigid and flexible units are 200W mono solar modules, and they offer higher charging efficiency, indeed.

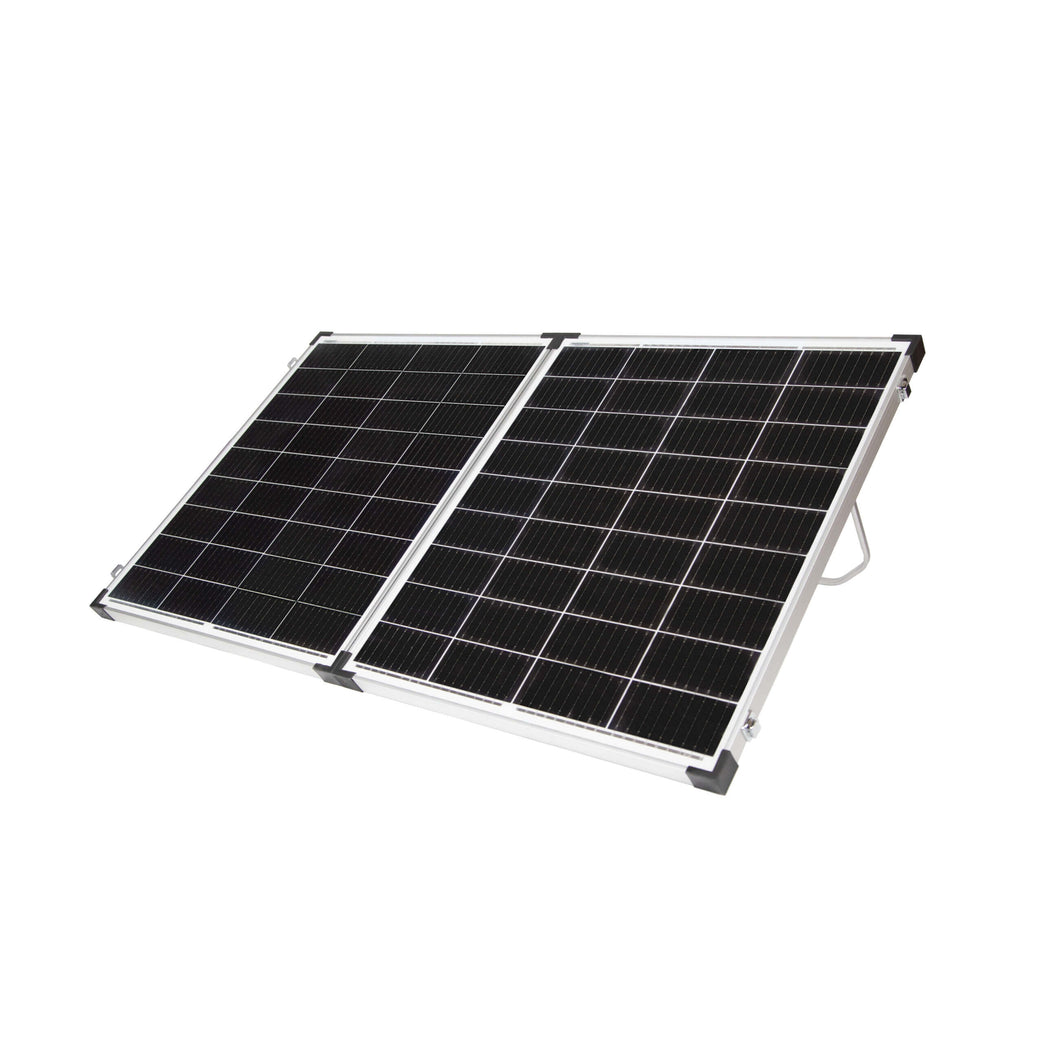

Titan 200W Rigid, as per its maker weighs 27lbs. Meanwhile, 200W Briefcase is 33lbs and comes with a case.

Important Facts and Features

Highly Modular Solar Generator

Modular solar generators of this form are becoming industry standard. But we heard about a customized solar generator for the first time when the first Titan solar generator landed in the stores over 4 years ago. Its way of adding up to the battery capacity is really awe-inspiring. You can purchase an additional battery pack, and just snap it onto the bottom of the solar power generator quickly.

Detachable Battery Packs

Thanks to its modular design, you can remove and attach the battery packs and expand its capacity with more units. Each of the brand’s additional battery packs comes with separate handles. So, whatever heavy they are, you can comfortably carry them on your trips and enjoy access to unlimited storage capacity.

Massive 4000W Power Inverter

As said above, Titan 240SP is a 4000W power station. It has got two inverter outputs, with each having four full-size AC sockets. The inverter is a highly efficient model with a no-load power draw of as minimal as 5 watts.

The inverter reportedly has an efficiency rate of 92%. So, what you get is an outstanding solar generator with a commendable performance. You can virtually run anything with a 4000W power inverter, and it can offer an increased amount of power once attached with additional battery packs.

2500Wh LifePO4 Power Station

The Titan 240SP is a 2500Wh lithium power station. Though you can add multiple battery packs, Titan offers a ton of capacity even without the need to buy supplementary batteries. Well, 2500Wh itself makes it one of the largest solar power stations on the market.

Higher Solar Input

As said above, the Titan 240SP solar generator can handle up to 2400W of solar input. It has got a heavy duty MPPT solar charge controller so you can connect 2400W solar arrays and recharge it quite faster under optimal sunlight.

Though 2400W is the maximum, you can even connect more than that if you want to collect the power on a cloudy day. Titan’s maker PointZeroEnergy offers suitable solar chargers for the power station. So, you don’t need to go in search of a third-party vendor. It is available in multiple kits with different solar panels.

Powerful AC Chargers

Well, next to the solar input outlets, Titan integrates one 240V charging inlet. Like the solar ones, this is also designed very powerful to recharge the high-capacity battery packs in a few hours. As per reports, it will take only four hours to recharge the 4kHr of batteries from 0 to 95%.

Titan’s bundle of two added battery packs typically comes up with two pieces of AC chargers. Obviously, they can increase the solar charging capability of the solar generator up to 2400 watts.

Great Collection of Solar Generator Kits

Yet another attractive thing with Titan is that it is available in a wide collection of solar kits, covering both variants of its solar panels. They range from the basic 500W to top-end 2000W kits.

That makes it easy for you to choose from a ready-to-use solar generator kit. You don’t need to purchase the components individually. Of course, these bundles pack up all the other required accessories as well. Check out the popular 2000W Titan solar generator kit below. It packs up to 20 units of Flexx 100 solar panels.

Absolutely, these Titan generator kits include a wide range of accessories other than the generator and solar panels. Depending on the bundles, they may include AC chargers, expansion battery packs, USB chain lights, 30W USB adapters, carrying bags, solar panel cases, cables and wires, connectors, etc.

Titan 240SP Solar Generator Vs. Goal Zero Yeti PRO 4000

Goal Zero’s higher-end Yeti PRO 4000 is also in the heavy duty yet portable power station category. Take a look at the comparison table below to learn more:

Feature	Yeti PRO 4000	Titan 240SP
Battery Type	LiFePO4 (Lithium Iron Phosphate)	LiFePO4 (Lithium Iron Phosphate)
Battery Capacity	3994Wh (10.8V, 369.6Ah)	2500Wh (usable capacity), 27.2V, 90Ah
Lifecycles	4000+ cycles to 80% capacity	Not specified, LiFePO4 typically >2000 cycles
AC Power Output	3600W continuous, 7200W surge	4000W continuous, 8000W surge (for 10 seconds)
Charging Times (AC)	0% to 80% in 2 hours	Up to 800W standard, expandable to 3600W
Solar Input	1500W max	Up to 4400W with external MPPT
AC Input	1800W max	Up to 3500 watts with additional chargers
Weight	115.7 lbs (52.5 kg)	109 lbs combined (62 lbs power module + 47 lbs battery)
Dimensions	21.4 x 13.8 x 14.8 in	18.5 x 12 x 13.5 in (combined dimensions)
Operating Temperatures	Charge: 0-52C, Discharge: -20 to 60C	Not specified
Expansion Capabilities	Up to 4 Tank PRO 4000 expansion batteries	Scalable with additional battery packs
Safety Certifications	UL2743, FCC Class B	Not specified, but typically UL, CE, FCC compliant
Connectivity and Monitoring	Goal Zero Power App compatible	Not specified, typically available
Included in the Box	Power station, AC wall charger, user guide	Power module, battery(ies), solar panel adapters
Warranty	Not specified in provided content	5-year standard warranty
Additional Features	Chainable, Simultaneous recharge/discharge	Super fast AC charging, heavy-duty MPPT charge controller

Final Thoughts

That has been our take on the much-excited Titan 240SP solar generator. Since its release, the heavy duty portable power station has been grabbing extensive attention for many of its unique features with enhanced scalability as the key point. Though we are familiar with the idea of a stackable power station, Titan 240SP stands out with its highly integrated profile.

Nearly all reviewers of the product have shared positive thoughts about the Titan solar generator. It is surely going to be one of the largest solar power stations with a lot of stunning features and unrivaled scalability. Share your thoughts about the product in the comments.
